Conventional fire extinguishers
L903A
Detailed description：

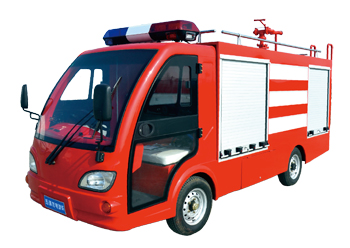

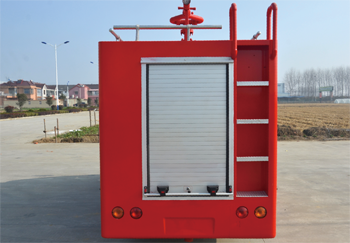

| L903A Electric Fire Truck | |||
| Number of seats (including driver) | 2 | ||
| Main dimensions | Shape: Length × width x Height (mm) | 4800x1430x2500 | |
| Wheelbase (mm) | 2320 | ||
| Tread | Front Wheel (mm) | 1220 | |
| Rear Wheel (mm) | 1275 | ||
| Minimum ground clearance (mm) | 160 | ||
| Vehicle Equipment Quality (kg) | 1700 | ||
| Rated Load (kg) | 1200 | ||
| Maximum speed (km/h) | 24 | ||
| Maximum climbing degree (full-load%) | 15 | ||
| Minimum turning radius (m) | 5.5 | ||
| Brake Distance (V=20km/h) (m) | ≤5m | ||
| Renew Mileage (km) | ≤80 | ||
| Motor | Rated Power (KW) | 5KW | |
| Rated Voltage (V) | 72V | ||
| Rated Speed (r/min) | 2800 | ||
| Motor type | Serial Excitation DC Brush | ||
| Rechargeable Machines (V/A) | 72/30 | ||
| Controller (V/A) | 72/400 | ||
| Battery (AH) | Maintenance-Free 200Ah | ||
| Out-of-car noise db | ≤68 | ||
| Brake Systems | Front and rear wheel hydraulic braking | ||
| Steering system | Electric Direction Booster System | ||
| Water Tank Volume | 1000 liters | ||
| Hand Lift Fire pump system | Machine model | JBQ5.5/9.0 | |
| Engine type | Single Cylinder Gasoline engine | ||
| Engine Models | 13HP Zongshen Engine | ||
| Engine power | 9.6KW/13HP | ||
| Weight | 63kg | ||
| Water Suction Pipe Connection method | Threaded type | ||
| Outlet pressure | 0.55MPa | ||
| Dust | 55m | ||
| Rated Flow | 4.75m?/h | ||
| Water Diversion Method | Swivel vacuum pump | ||
| Maximum suction depth | 7m | ||
| Water Diversion Time | ≤18s | ||
| diameter of inlet and outlet pipe | 65mm | ||
| Startup mode | Self-return hand pull rope start, electric start | ||

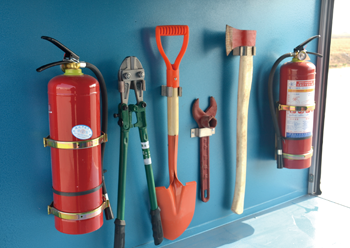

| Complete set of fire fighting tools | Fire Axe | 1 put | |
| Fire Water Belt | 3 sets | ||
| Fire wrench | 1 put | ||
| Fire pliers | 1 put | ||
| Fire water Gun | 1 PCs | ||
| Fire Shovel | 1 put | ||
| Fire Extinguisher (4kg) | 2 Bottles | ||
| Other standard configurations | Door configuration: Left and right door assembly Defrost configuration: None | ||
